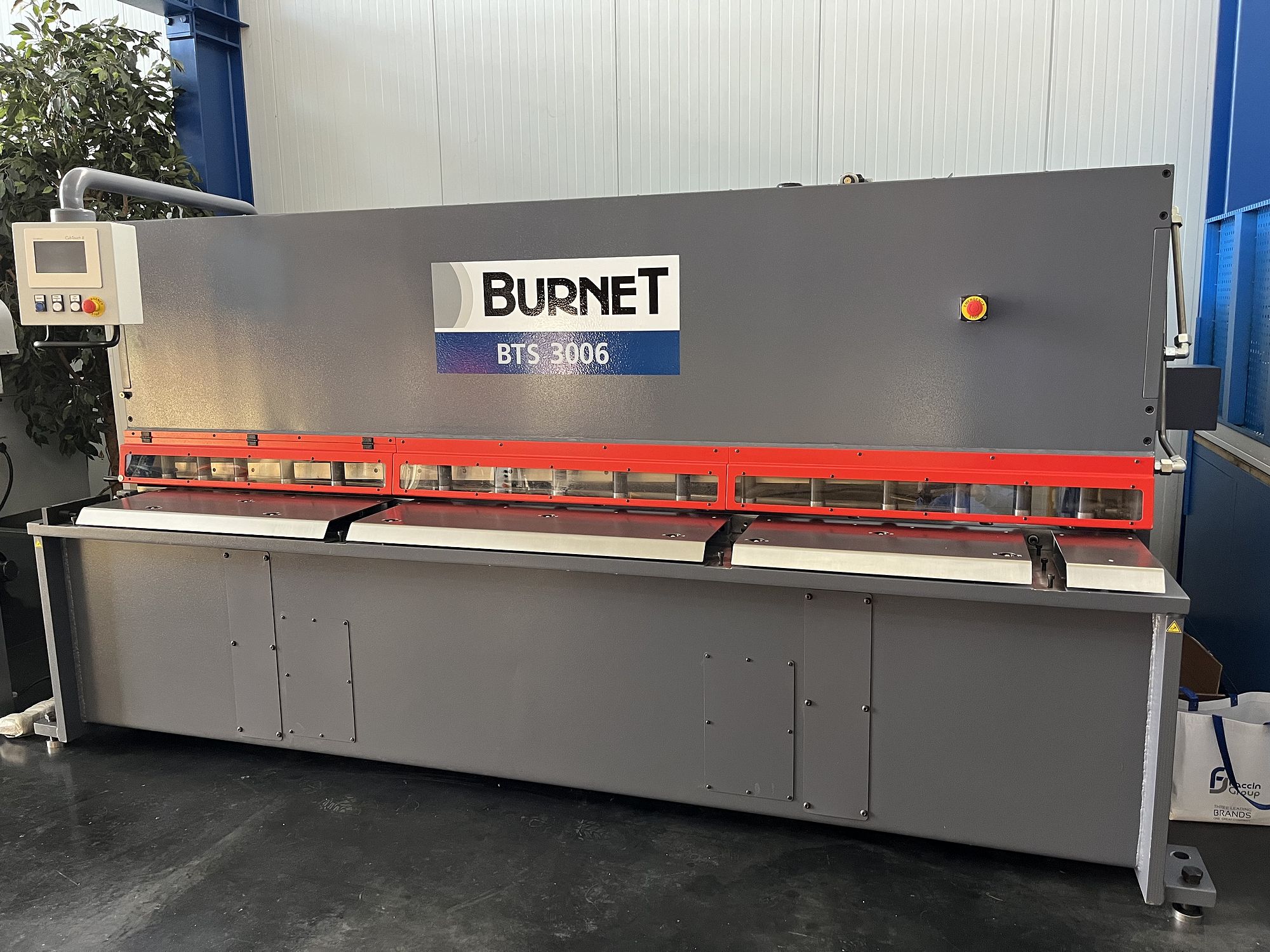

Cette machine est en stock!

Spécifications techniques

ConditionNouveau
Année de fabricationNEW
Capacité (mm)3060 mm
Cutting angle1,5°

Max. cutting length     : 3060 mm

Cutting performance for material Tensile strenght 400 N/mm²    :  6 mm

Cutting performance for material Tensile strenght 600 N/mm²    :  4 mm

Rear stop speed           : 120 mm/s

Cutting angle                : 1,5 °

Max. strokes for full cutting length   :  20 1/min

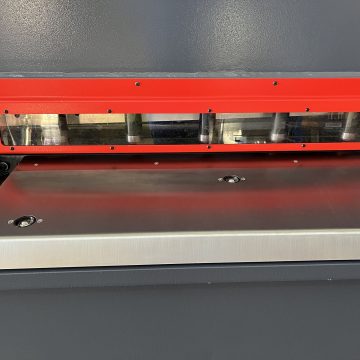

Number of hold-down units    :  17 pcs

Oil tank capacity    :   180 liters

Table length    :  3320 mm

Table depth     :  485 mm

Table height    :   800 mm

Machine body depth  :  1535 mm

Length approx.  :   3900 mm

Width/depth approx. (with back fence and front arms)  :     3275 mm

Height approx.    :  1900 mm

Weight approx.  :   6550 kg

Drive motor output   :  11 kW

Including:

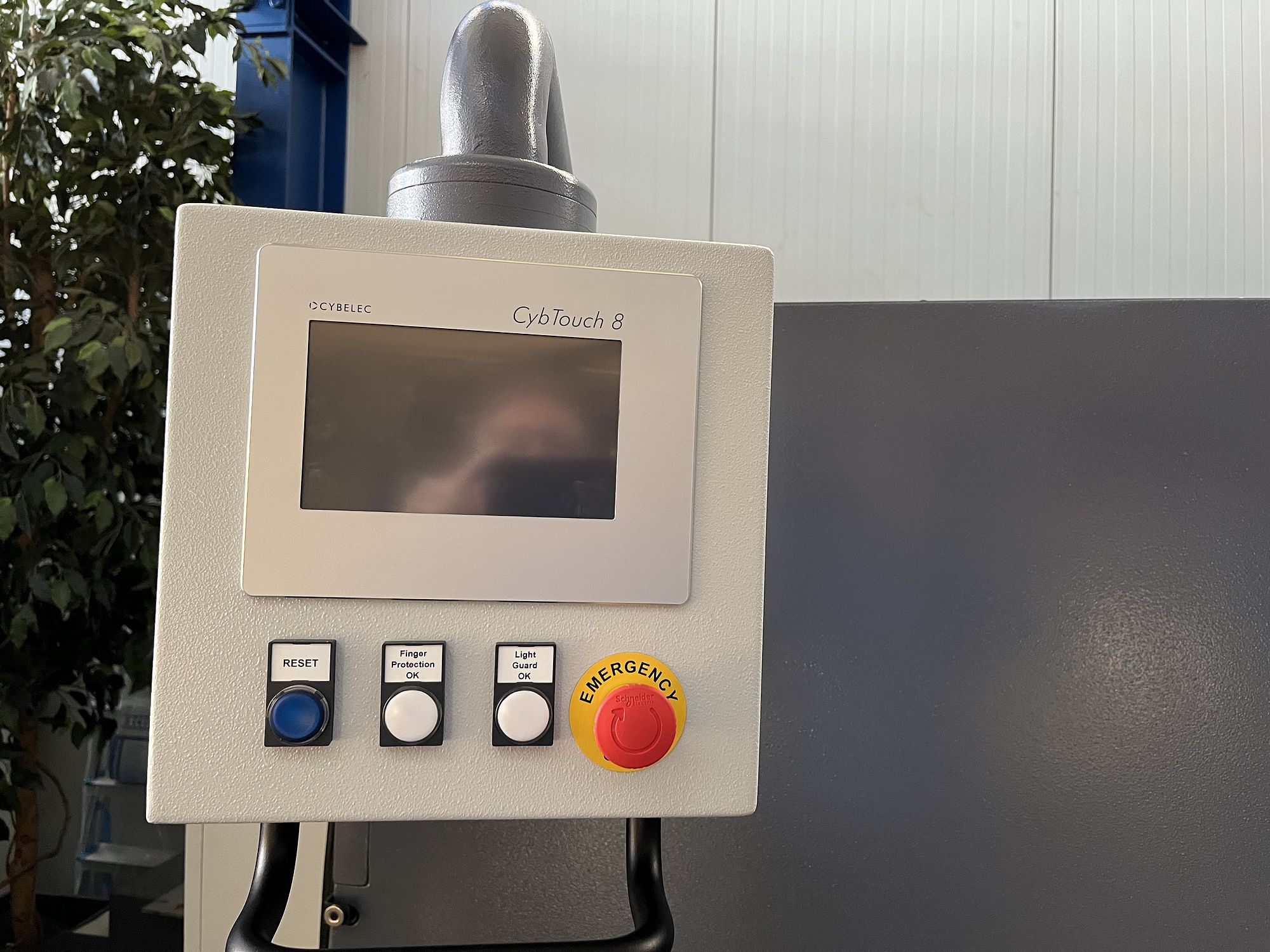

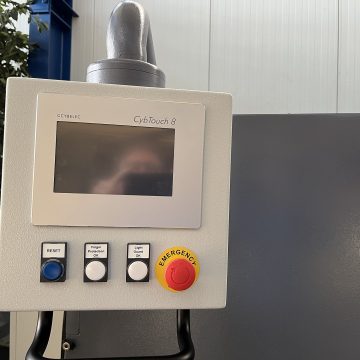

Cybelec cybtouch 8 control unit

Control unit on swivel arm

CE-norm with light barrier on the back side

Stainless steel table tops

Sheet slider at rear

Motorised blade gap adjustment

Ballscrew backgauge 1000mm

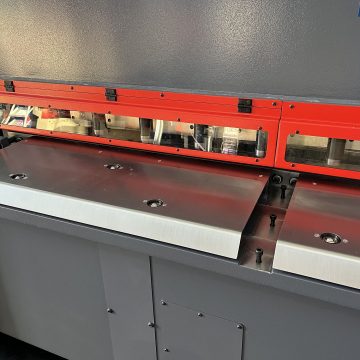

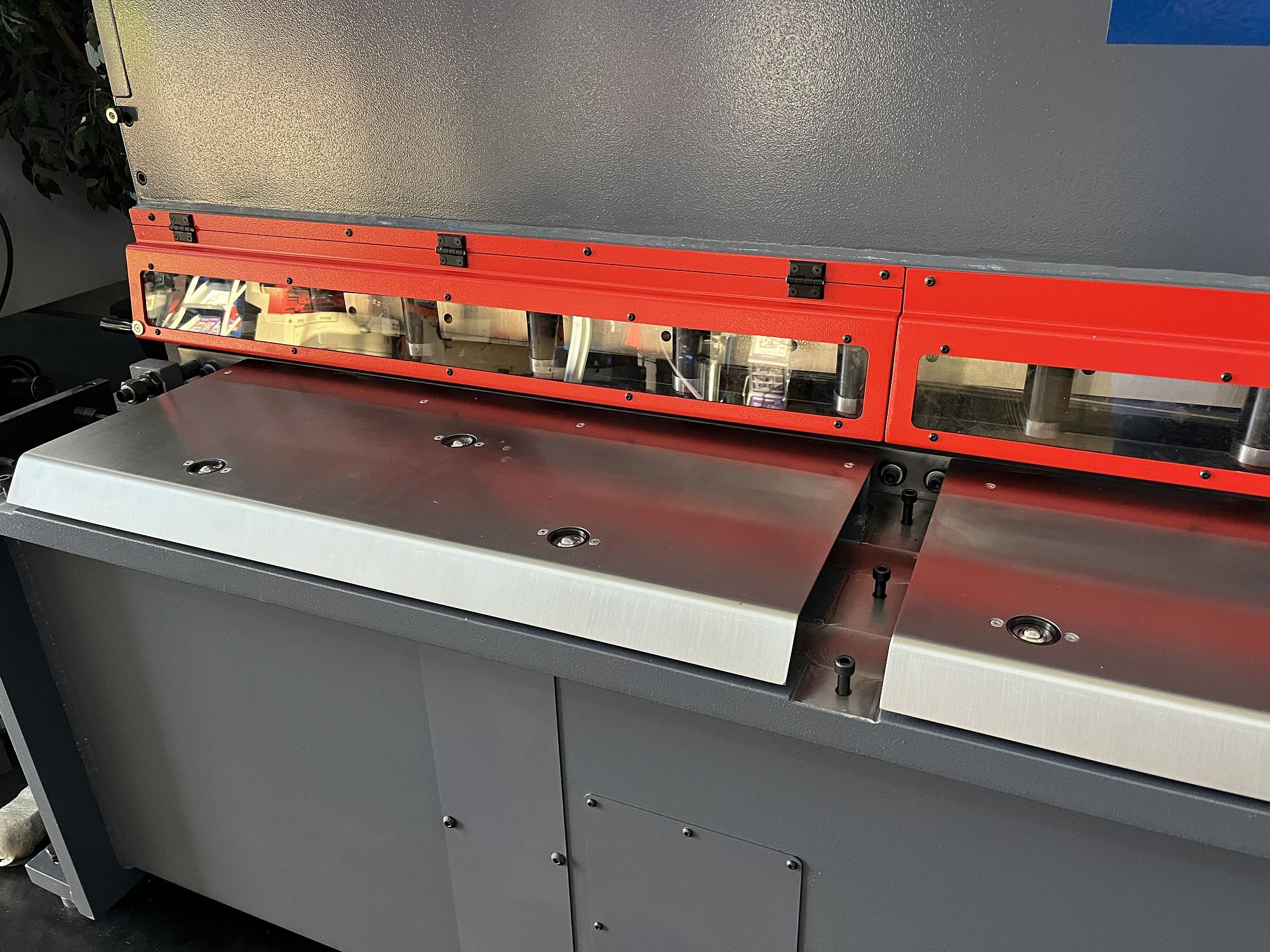

1mt. flip-up finger guards with plexi glass

1 Squaring arm L = 1500mm, with scale & T-slot and tilting stop

2 Support arms L = 1000mm

Ball transfer tables

Stroke counter from control unit

Rubber pads for holddowns

LED illumination & shadow wire

Top 2 side & bottom blades with 4 side

Hydraulic valves : duplomatic

Hydraulic pump : kcl

Êtes-vous intéressé par cette machine? Contactez-nous pour plus d'informations ou planifier une visite.
