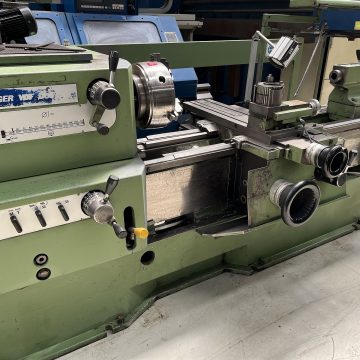

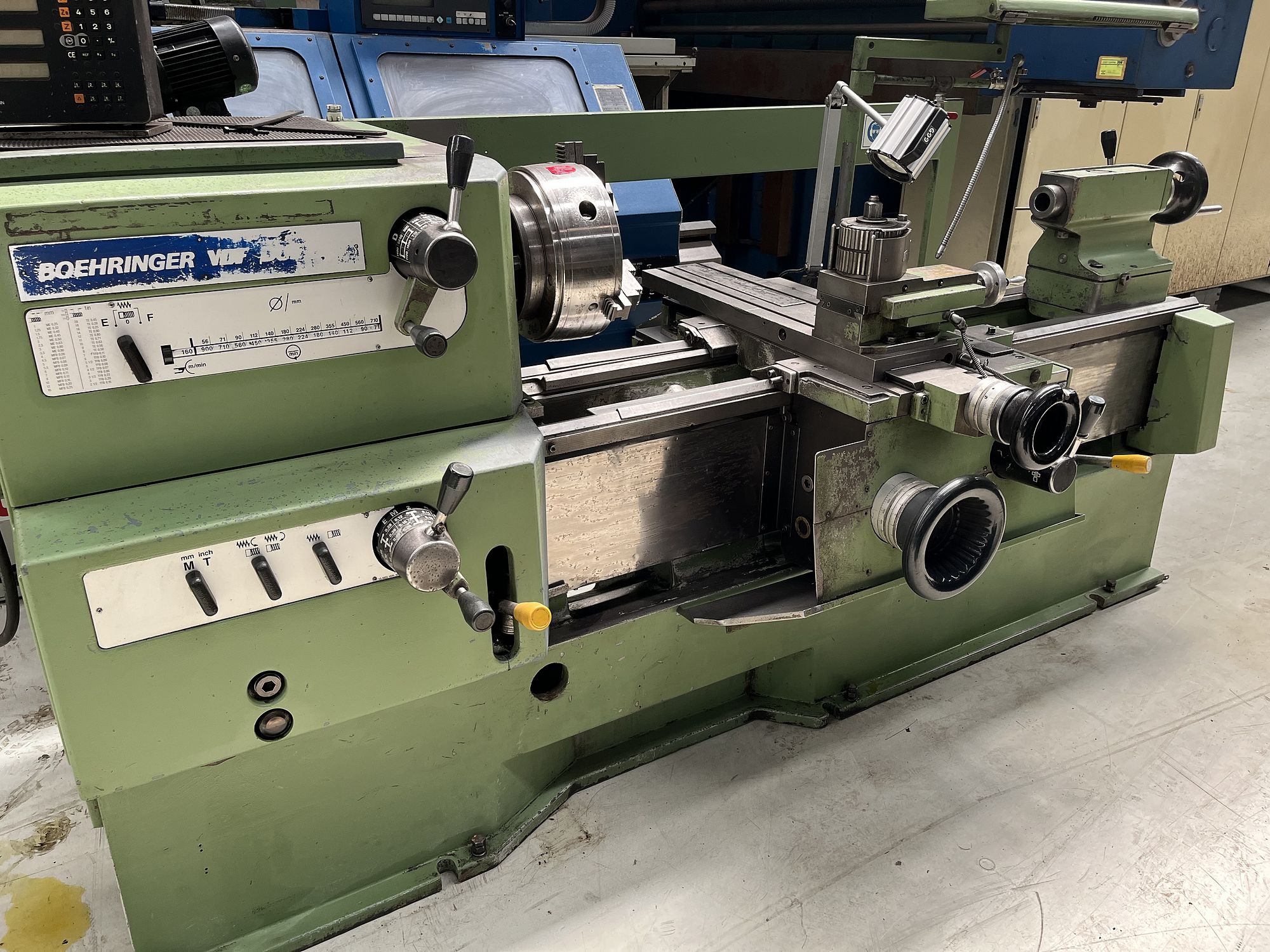

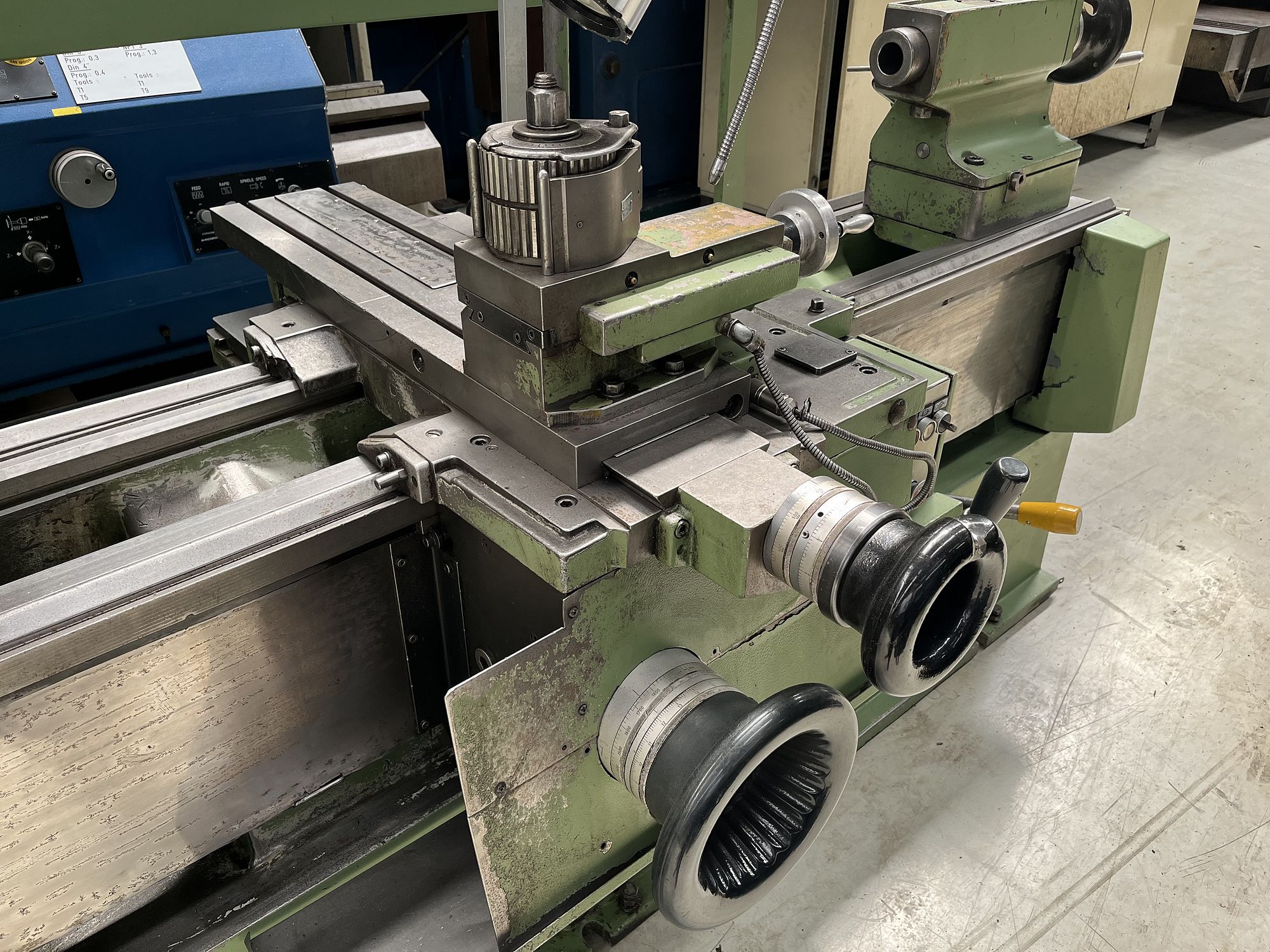

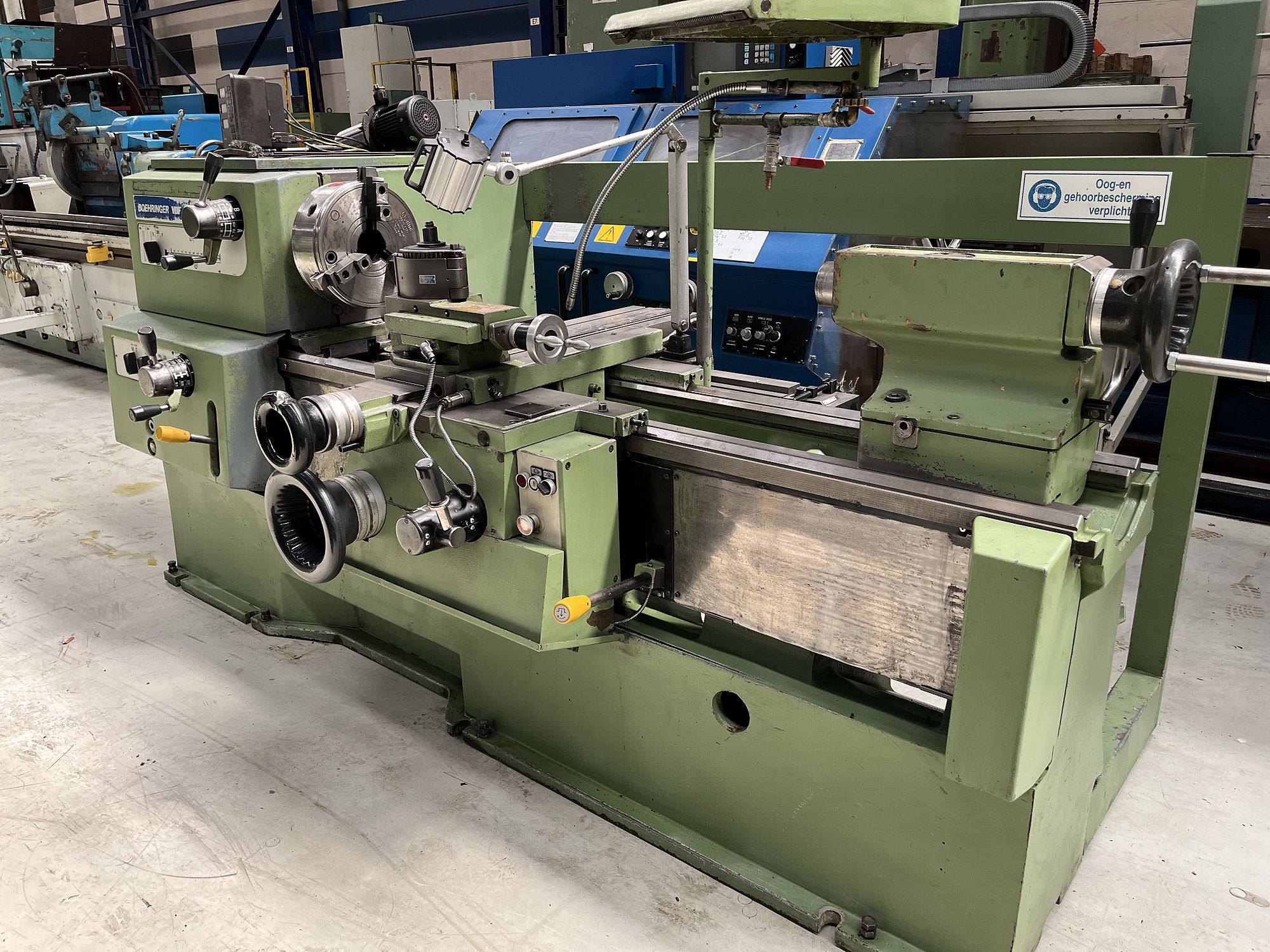

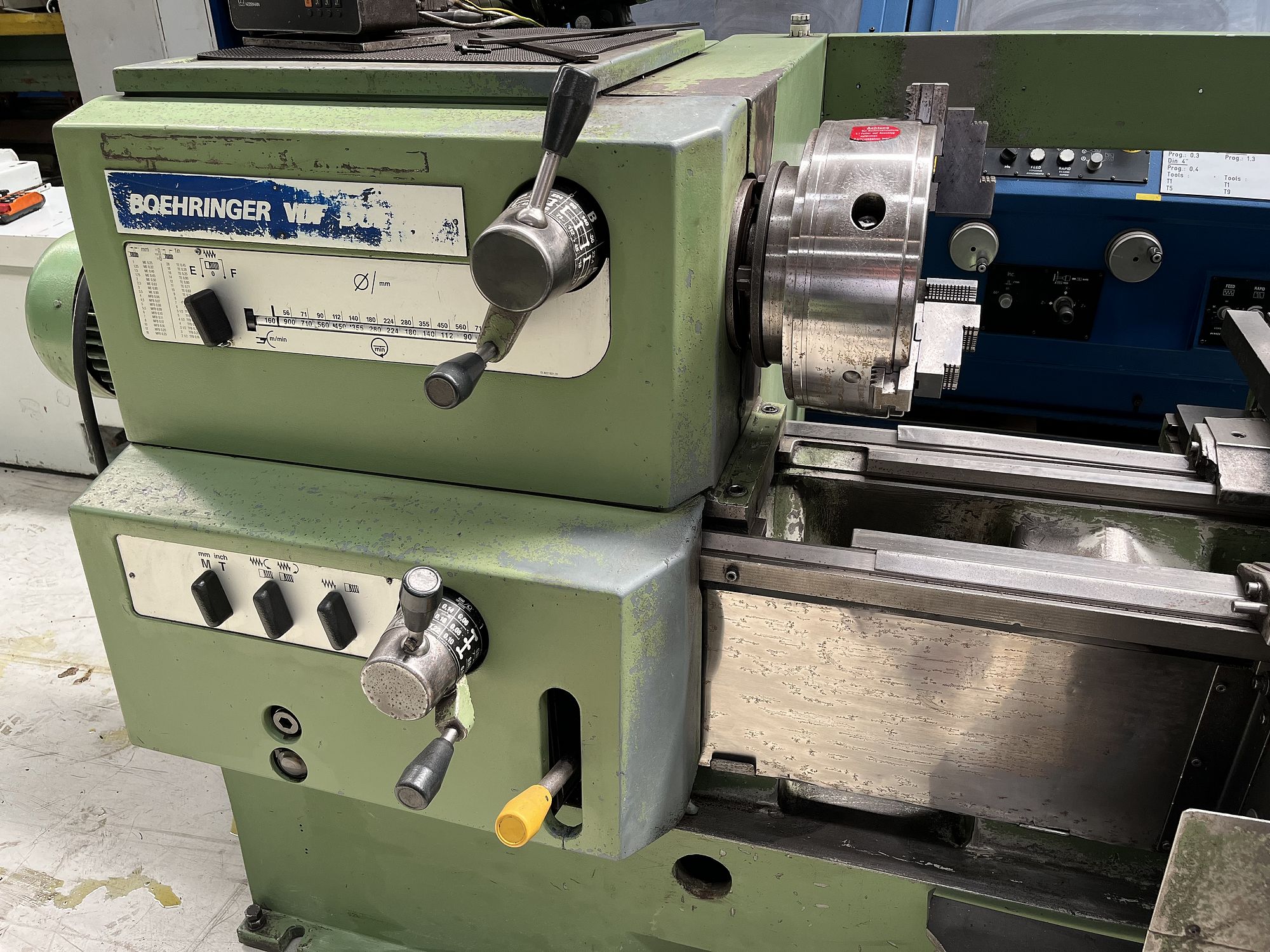

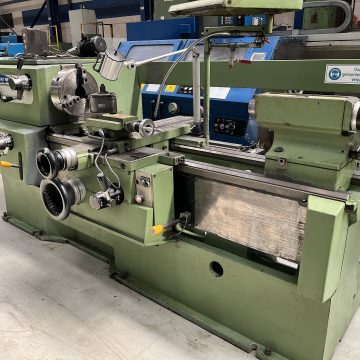

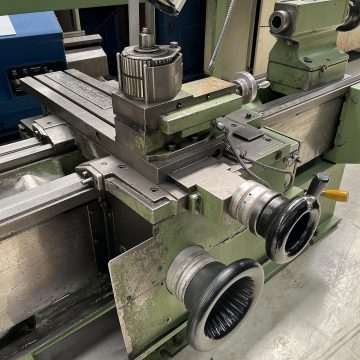

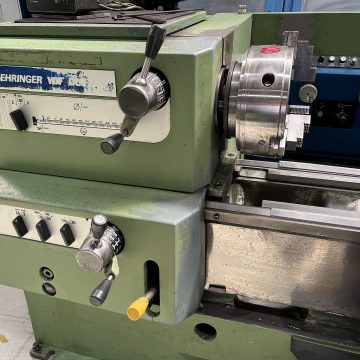

VDF BOEHRINGER DUE560 (13.028CM)

Specifications: Max swing over bed (mm): 560, Centre distance (mm): 1500, Spindle bore (mm): 60

This machine is in stock!

Technical specifications

ConditionUsed
Max swing over bed (mm)560
Centre distance (mm)1500
Spindle bore (mm)60
Machine number1022 083906
Max swing over cross slide (mm)360
R.P.M.11,2 - 1800 (24x)
kW15
Volts (V)380
Cycles (Hz)50
4-Jaw chuck ø (mm)500
Steady rest ø (mm)320

Included parts & extra info

3-jaw chuck Ø 315 mm

4-jaw chuck Ø 500 mm

Taper attachment 300 mm

Steady rest Ø 320 mm

Following rest Ø 160 mm

Rapid traverse

Coolant system

Multifix toolholder

2-Axis D.R.O. Sony

Live center

Threading mm/inch/DP/model

Interested in this machine?
Contact us for more information or plan a visit.
